Under a latency deadline, how much engine area does picking the most accurate model first cost, compared with choosing model and lane count together?

research/accel-codesign

Model-first vs joint choice of model and MAC lane count under a latency deadline, on the 40 measured accel-kws models; accepting 2 validation points less cuts engine area 31–42% (stylised, table-based, cycles for more than one lane analytic).

6 tests

What it found

Exhaustive joint search over the 40 measured accel-kws keyword-spotting models and six MAC lane counts (240 designs), against a model-first flow, at deadlines of 2,000–20,000 cycles. The most accurate model (validation 0.775, test 0.752) needs 16 lanes at 2,000 cycles and 7,667 generic cells; accepting 2 validation points less (test 0.738) cuts area by 31–42%, and 3 points by 35–56%. Stylised and only partly the milestone: models are a fixed measured table (the dataset was unreachable), cycles for more than one lane are analytic and not RTL-simulated, memory bandwidth is not counted, area is generic gates, and no NSGA-II or Bayesian search was run (the space is small enough to enumerate).

A figure from its own output

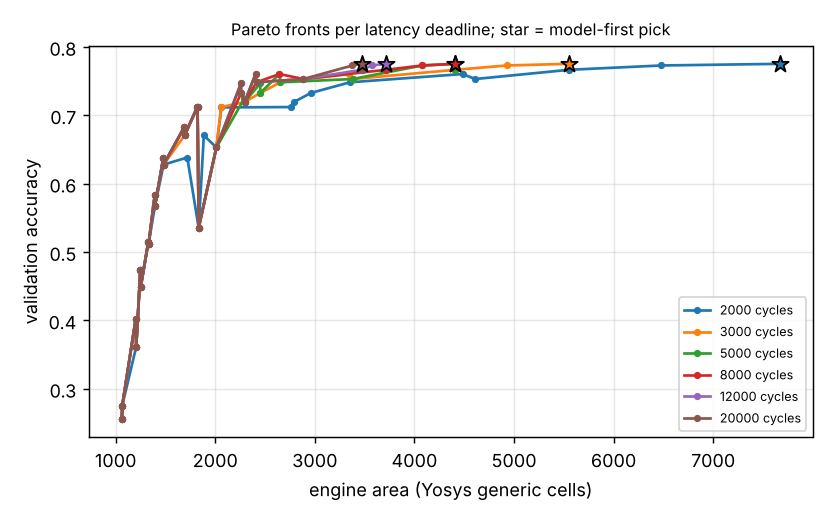

Figure produced by research/accel-codesign: front — accel-codesign/experiments/front.png, written by the project's own experiment code.

Paper, code and results
