How large must an activation buffer be before the best dataflow for a small keyword-spotting accelerator changes?
research/accel-dataflowbuf
How large a bounded LRU activation buffer must be before output-stationary stops being the best dataflow for the 40 accel-kws models at batch 4: 32, 64 and 128 words at 8, 16 and 32 lanes (for 10 to 30 of 40 models, input-stationary wins), and not at all at batch 1; buffer-read energy is assumed and no area is charged (stylised).
What it found
A bounded LRU activation buffer of K 8-bit words added to the four accel-dataflow schedules and swept over the 40 accel-kws models at 8, 16 and 32 lanes. At batch 1 output-stationary wins every model at every K. At batch 4 input-stationary first ties or beats it at K = 32, 64 and 128 words (8, 16 and 32 lanes; 10 of 40 models at 8 and 16 lanes, 30 at 32), and no flip occurs for the 2-bit models. If a buffer read costs half an SRAM read instead of a tenth, the flips mostly disappear. Buffer-read energy is assumed and buffer area is not charged. Stylised.

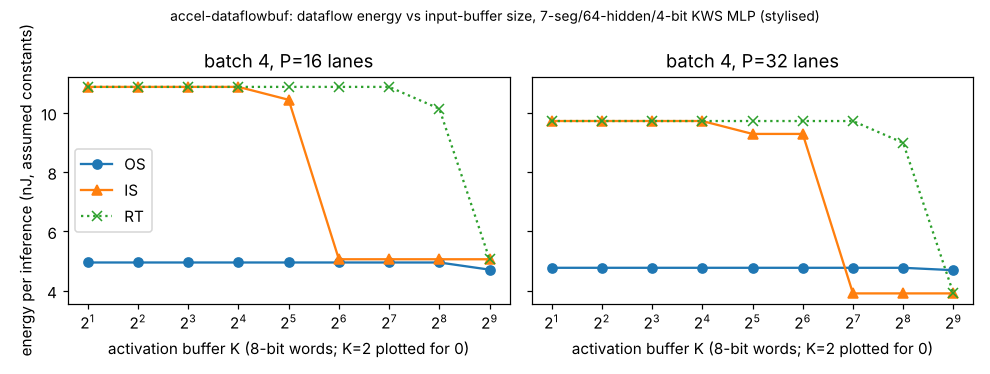

A figure from its own output
Paper, code and results
