How many injected RTL bugs do random, coverage-directed and formal checks catch, and at what cost?
research/eda-verify
Mutation study of random, coverage-directed and bounded-formal RTL checks on the MAC accelerator: 64 random vectors kill 99% of killable mutants, formal 71% (timeouts), at ~50x the CPU cost (stylised).
What it found
Mutation study on the MAC accelerator: 91 compilable mutants (operator, literal, deletion and ROM edits), of which 66 are killable and 16 are proved equivalent by induction. 64 random vectors kill 99% of the killable ones, 16 coverage-directed vectors 97% (16 random: 95%), and bounded Yosys formal checking 71% because 19 SAT runs timed out. Cost per kill: about 1 s for simulation against 52 s for a formal kill. Stylised: one design, one bound, one solver.

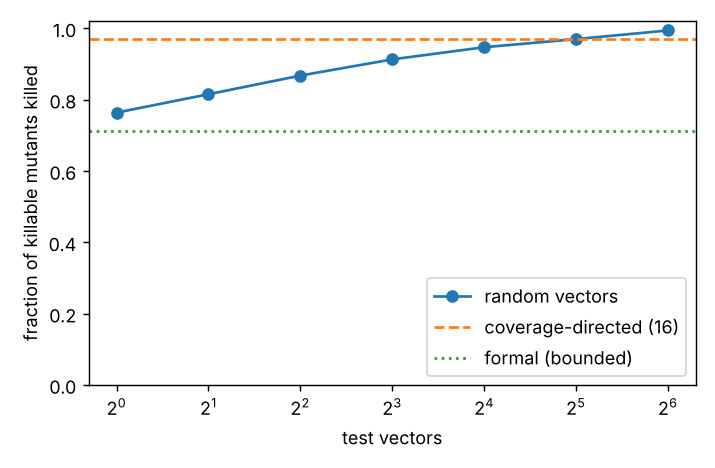

A figure from its own output
Paper, code and results
