Does weight-sharing lookup-table inference beat a multiply-accumulate engine for a small accelerator?

research/accel-lut

Weight-sharing product-table inference against int8 MAC engines on the digits MLP: negative at this size, break-even only for wide layers with cheap table reads. Stylised, modelled energy.

6 tests

What it found

A k-means weight-sharing codebook with a per-input product table (no multiplier per weight) against int8 serial MAC engines, on the 64-32-10 digits MLP of accel-sparse, dense and 75% pruned, over 10 splits. Negative: within 2 points of float32 the table engine does not beat int8 (dense: 3.51 nJ for 8 shared values against 3.56 nJ for int8; pruned: 1.55 against 1.51 nJ), and it only looks better against a baseline that rereads activations per weight. An analytic sweep puts the break-even at layers of about 128 outputs or more, and then only if table reads cost a quarter of an array read. Stylised: assumed 45 nm constants, no retraining or RTL, substitute task.

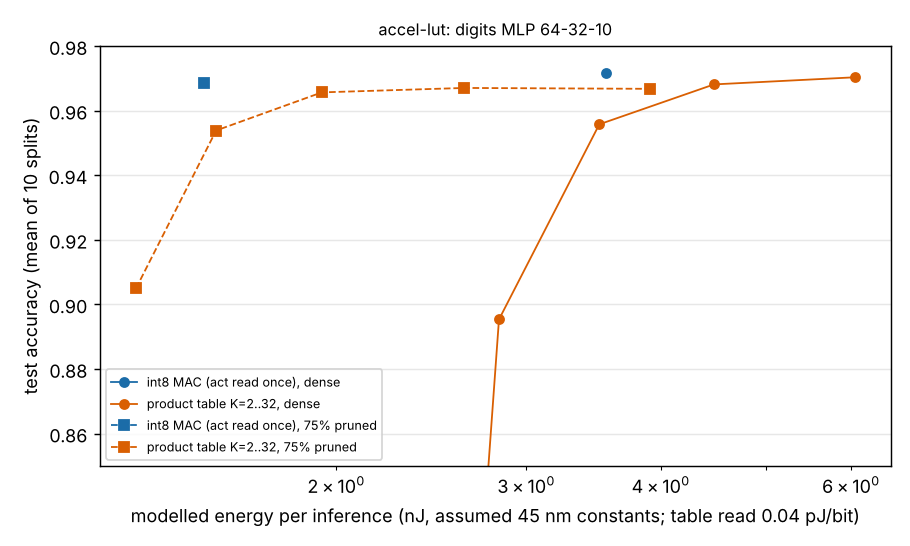

A figure from its own output

Figure produced by research/accel-lut: frontier — accel-lut/experiments/frontier.png, written by the project's own experiment code.
