Can a parametric L-bracket be sized by finite elements for minimum mass and come out printable?
research/simdesign-bracket
Parametric L-bracket sized by 2D finite elements (scikit-fem) for minimum mass under a stress limit: differential evolution 19.6 g vs random 25.6 g vs grid 31.4 g at equal budget, exported as STL with a printability check. Assumed material inputs. Stylised.
What it found
A 2D plane-stress scikit-fem model of an L-bracket with a filleted inner corner (arm width, fillet radius, depth) under a 100 N tip load. Differential evolution reaches 19.6 g against 25.6 g for random search and 31.4 g for a grid at 144–150 evaluations each, under a 20 MPa stress and 4 mm deflection limit. The design is exported as a binary STL and checked for minimum wall and overhang. Stylised: material properties and limits are assumed, the optimum stress rises about 7% on mesh refinement (just over the limit), the sharp-corner stress diverges, and the thin optimum was not checked for out-of-plane buckling.

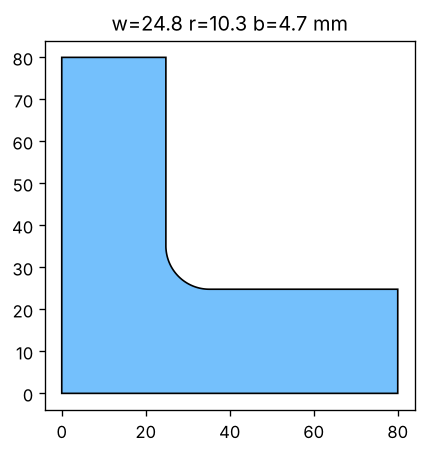

A figure from its own output
