Can a blocking-aware correction to queueing analysis predict a robot-printer cell across loads?

What it found

A follow-up to the held-printer project: held demand plus a fitted stall (printers waiting for the arm to unload them) helps only at saturation (1.4% mean error) and double-counts load and unload time elsewhere (8.5%). A predictor that keeps latency (plain demand plus stall) apart from capacity (held demand plus stall) scores 3.6% against 4.7% for plain MVA on 32 design settings, but ties plain MVA on a held-out job mix (3.4% against 3.5%) and still underestimates by up to 8% at moderate load. Stylised; illustrative times; 20 seeds.

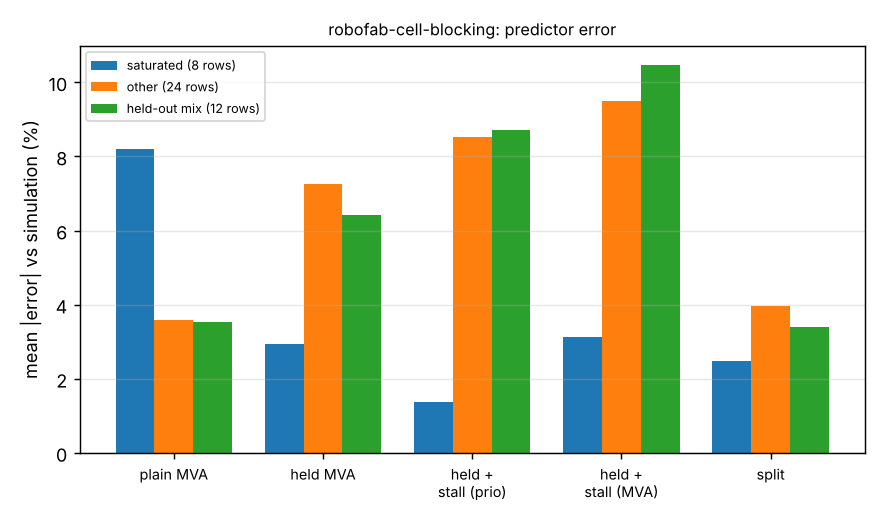

A figure from its own output

Paper, code and results

• README and method
• White paper
• Experiments and results
• Code
• Tests
