Does the minimum feature of a robust topology-optimised beam follow the filter radius when the mesh is refined?

What it found

Repeats the simdesign-robustradius sweep on 60×20 and 180×60 meshes with the filter radius held at 1/30, 1/20 and 1/15 of the beam length, plain Heaviside against the robust eroded / blueprint / dilated design (12 runs, one each). On the 180×60 mesh the minimum solid feature is 5 pixels (2.8% of the beam) at all three radii, 6, 9 and 12 elements; on 60×20 it is 1–3 pixels. With the earlier 120×40 runs the feature in pixels grows with the mesh (1, 3, 5) and not with the radius, so it is set by the grid here, not by the filter (negative for radius control; one problem, coarse integer measure). Two robust runs on the 60×20 mesh ended at poor blueprints (compliance about 740 against about 195), reported as such. Stylised: 2D, dimensionless.

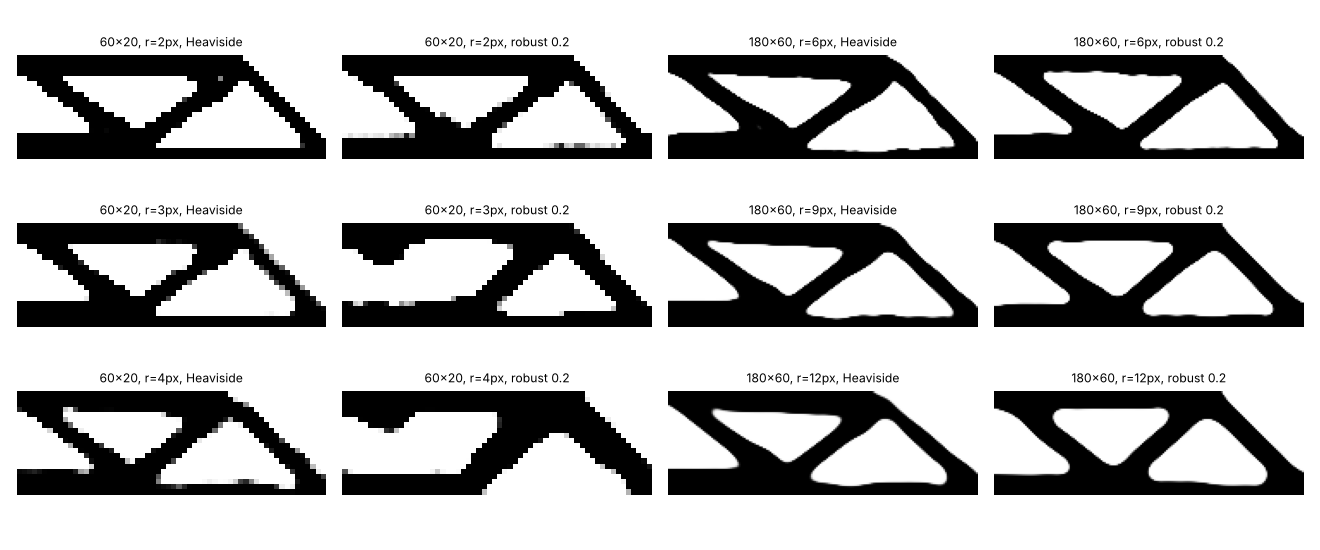

A figure from its own output

Paper, code and results

• README and method
• Experiments and results
• Code
• Tests
