What changes when the w/b ≤ 8 slenderness ceiling of the laser-cut bracket is replaced by a buckling-factor floor?
research/simdesign-bucklebound
Replacing the w/b ≤ 8 ceiling with a closed-form buckling-factor floor makes the 1.5 mm laser-cut gauge feasible (31.0 g, about 13% lighter than the best 2 mm design) and changes nothing at 2 and 3 mm; at 1 mm the minimum-wall rule, not buckling, blocks every design; stylised, unvalidated factor, preliminary.
What it found
A small optimiser study (stylised, preliminary; the buckling factor is an unvalidated closed form). Minimising mass over web width and fillet radius at four sheet gauges with differential evolution (three seeds, mesh 1.5 mm): the old ceiling makes the 1.5 mm gauge infeasible, while a buckling-factor floor of 1 or 3 yields a 31.0 g design (w ≈ 18.4 mm, factor 3.5), about 13% lighter than the best 2 mm design (35.8 g). At 2 and 3 mm the three guards agree to 0.1%. At 1 mm no design is feasible under any guard because the 1.2 mm minimum-wall rule, not buckling, rejects it. Mass is the only objective; nothing was made or tested.

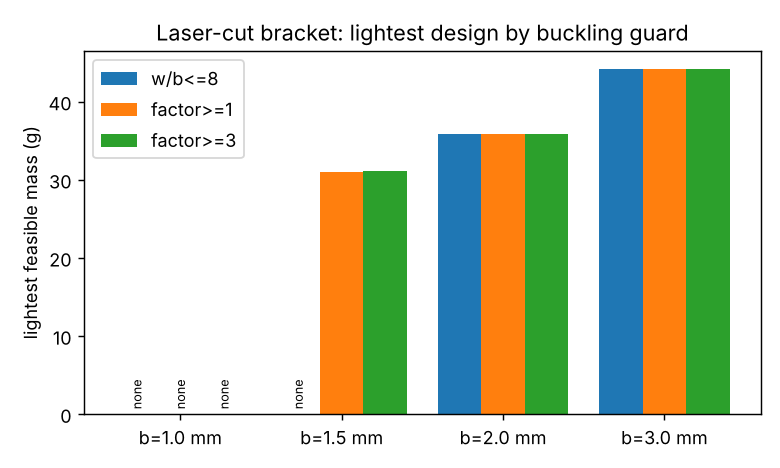

A figure from its own output
Paper, code and results
