Does the lightest 1.5 mm bracket design clear buckling in a converged 3D eigenbuckling model?
research/simdesign-buckle15
A through-thickness-converged 3D eigenbuckling model agrees with the closed-form buckling factor of the lightest 1.5 mm bracket design to under 1% (3.49 vs 3.47, so it clears the floor of 3); the horizontal-arm formula is about 18% conservative; one design, ideal bar, preliminary.
What it found
A small finite-element check (stylised, preliminary; ideal elastic clamped arms, one design). Meshing the 1.5 mm, w = 18.4 mm design from simdesign-bucklebound with hexahedra at three resolutions, including two layers through the thickness, the governing vertical-arm buckling factor is 3.49 against 3.47 from the closed form (ratio 1.020 → 1.007 on refinement), so the design clears the floor of 3. The horizontal-arm formula is about 18% conservative. Nothing was made or tested.

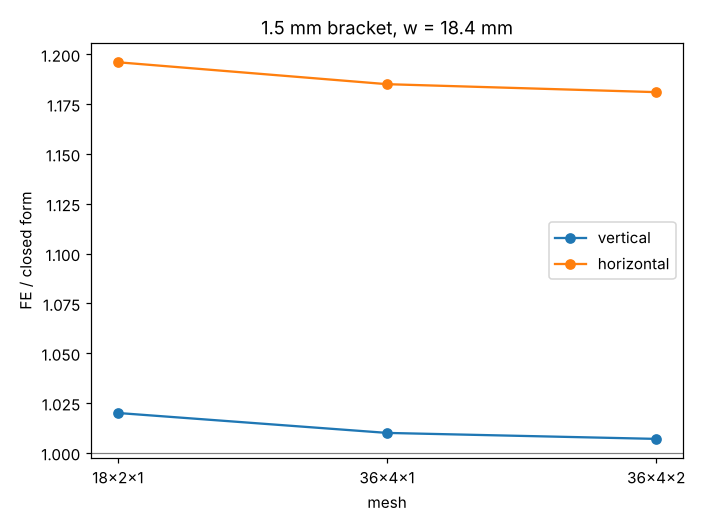

A figure from its own output
