How much stiffer than a uniformly thinned plate is a topology-optimised part, and how does that depend on volume fraction?

What it found

A stylised, preliminary study of two 2D plane-stress problems (cantilever 60×20, half-MBB 90×30). Thresholded 0/1 SIMP designs have 26–31% lower compliance than a plate thinned uniformly to the same volume at v = 0.3–0.5, the advantage shrinking to about 14% at v = 0.8; fits give C ∝ v^−0.8 against v⁻¹ for the plate. At low volume on these grids the design is disconnected and the comparison fails. One run per point, coarse grids, variable-thickness reference.

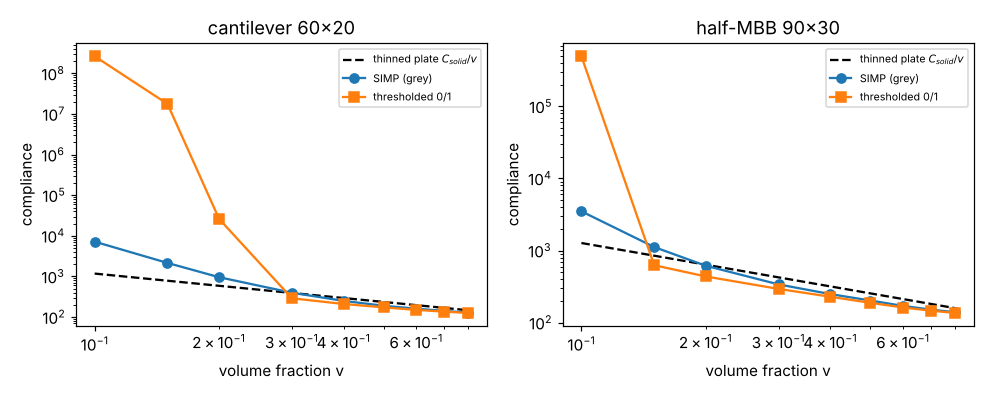

A figure from its own output

Paper, code and results

• README and method
• Experiments and results
• Code
• Tests
